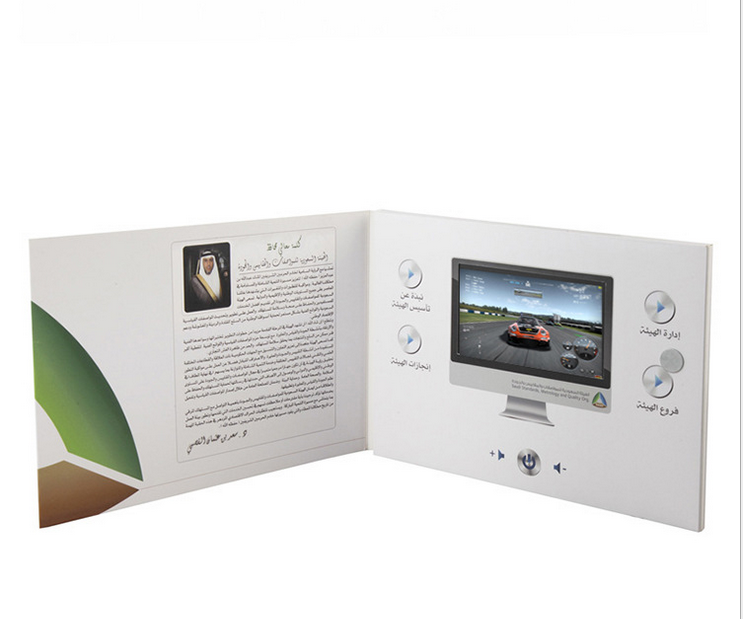

White Color Hard Cover Lcd Video Brochure Print Marketing And
Digital Marketing Tool
video brochure Print marketing and digital marketing tool with
7"LCD Screen ,128MB ,Rechargable battery
7.0inch LCD video greeting card/Video brochure
128MB-8G memory Optional ,1000mah battery ,
Resolution:800*480
Customized your design printing ,
Auto play video when open the card,
button function Optional .
2. Specifications:
Item | Description | Remarks |
Switch | Magnetic switch or ON/OFF button switch |
|
LCD Screen | Screen Size | Pixel Size | Aspect Ratio |
|
1.8 " | 320 x 240 | 4:3 |
2.4 " | 320 x 240 | 4:3 |
2.8 " | 320 x 240 | 4:3 |
3.5 " | 320 x 240 | 4:3 |
4.3 " | 480 x 272 | 16:9 |
5 " | 480 x 272 | 16:9 |
7 " | 800 x 480 | 16:9 |
Function Control Buttons (Available If Required) | ON/OFF button | 1 | When adding buttons to the artwork, the centre of each button need
to be at least 15mm from the edge of the screen, the edge of the card, or another button |
Volume Up | 1 |
Volume Down | 1 |
Video Files | 0-8 |
Play/Pause | 1 |
Print Size | A4, A5, DL (12.7 x 17.7 cm) | Customized print sizes are accepted. |
Print Solution | Please ensure all images are supplied in CMYK not RGB. |
|
Number of Video Files | 1-8 |
|
Memory | 128 MB to 4 GB |
|
Battery | Rechargeable battery |
|
Lifespan | 1.5h-3h |
|
Mini USB Port and cable | 1 USB port for uploading files and charging |
|
Screen Placement | The screen outline can be moved within the boundary of the card,
but must be at least 15mm clear of the edge of the card, the
buttons and the USB port. |
|
Speakers
| Set Up | 8OHM 2W |
|
Output | 2W |
Maximum Volume | 55dB |
Optimum Volume | 40 dB |
Volume Presets | 55 dB (if no volume buttons are selected) |
Video Format | .avi, mp4, etc. |
|
Boot Logo | Support a boot logo of the same pixels with the screen size. |
|
Special Finishes | When supplying guides for special finishes, please create the area
of the finish as a separate spot color within the artwork and
rename in color palette to the chosen finish e.g. (Spot UV, foil,
etc.) This must be made clear on the art Video Greeting Card for
Invitation Card/Invitation Card Sample/Invitation Card Models work
to prevent mis-production |
|
3.Our products advantage:
1,9 years professional OEM/ODM manufacture experience.
2,Competition price from directly factory.
3,Good after-sale services.
4,One year quality warranty.
5,Customized Logo & package are welcome.
4, Production processes
(1) We provide the template to the clients.
(2). Clients send us the artwork.
(3) Print
(4). Assembly
(5). Test
(6). Aging
(7). Packing
(8). Delivery
5, Our services:
Reply your inquiry within 24 working hours
Expert staffs, replies all your questions in exact English
Customized designs are available
Exercise and unique solution can be provided to customer's by our
well-trained and professional staffs
